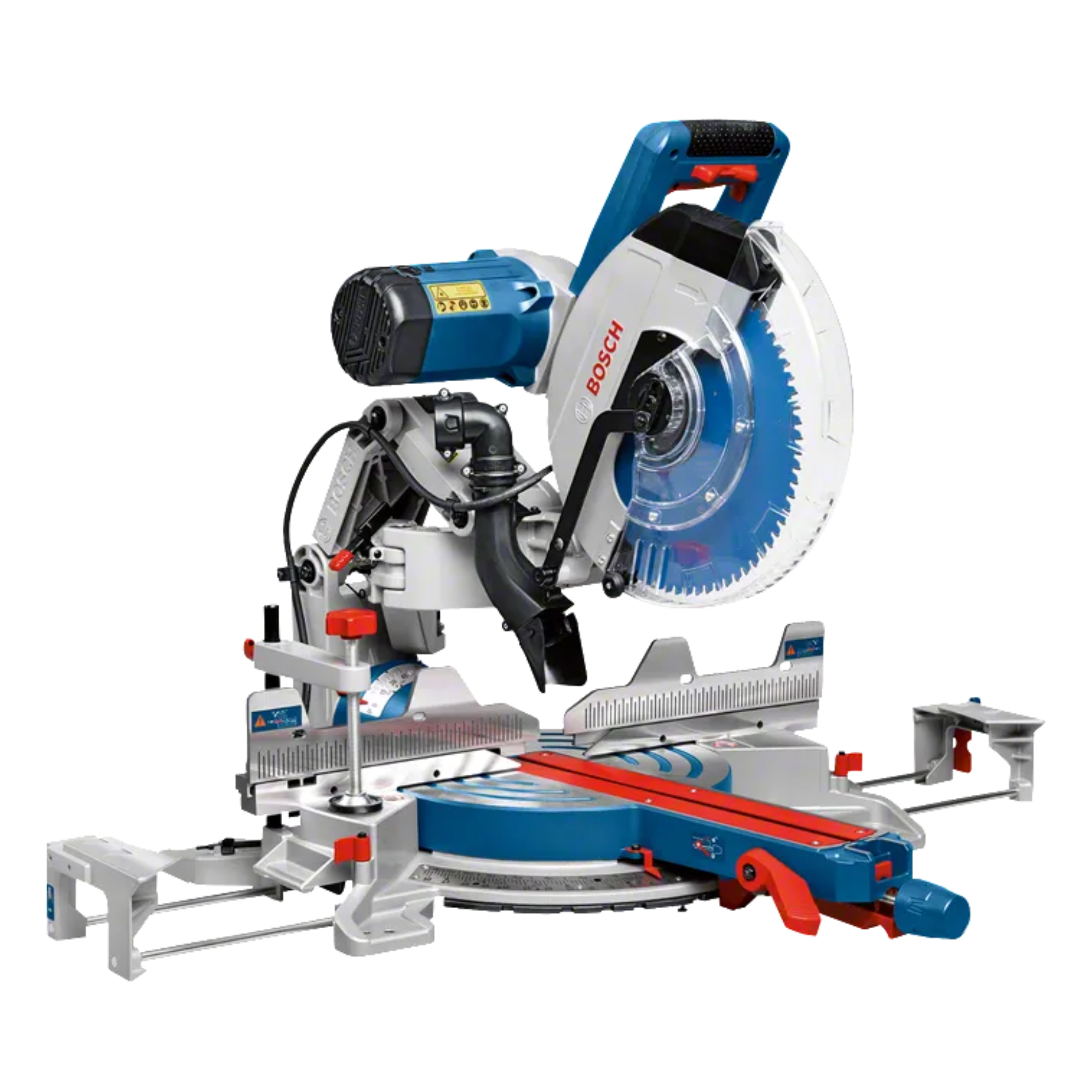

Bosch GCM12GDL Slide Mitre Saw
Couldn't load pickup availability
Bosch GCM 12 GDL Professional Slide Mitre Saw is designed for highly precise cross, mitre, bevel and groove cuts in wood and composite materials. Its innovative maintenance-free glide arm provides smooth operation and long-lasting durability. The 2,000W motor and 305mm saw blade deliver powerful cutting performance, while the double-line laser helps achieve accurate cuts. Its compact glide-arm design makes the saw practical for professional workshops and construction sites.
Specifications
| Specification | Details |
|---|---|
| Brand | Bosch |
| Product Type | Sliding Mitre Saw |
| Model | GCM 12 GDL Professional |
| Order Number | 0 601 B23 600 |
| Rated Input Power | 2,000W |
| Saw Blade Diameter | 305mm |
| Saw Blade Bore Diameter | 30mm |
| No-Load Speed | 4,000rpm |
| Mitre Setting | 52° Left / 60° Right |
| Bevel Setting | 47° Left / 47° Right |
| Cutting Capacity at 0° | 104 × 341mm |
| Cutting Capacity at 45° Mitre | 104 × 240mm |
| Cutting Capacity at 45° Bevel | 51 × 341mm |
| Tool Dimensions | 670 × 1100 × 740mm |
| Weight | 29.4kg |
| Voltage | 230V |
| Laser Guide | Double-Line Laser |
| Motor Type | Corded |
Key Features
- Powerful 2,000W motor for demanding cutting applications
- 305mm saw blade for large cutting capacities
- Innovative maintenance-free glide arm
- Compact glide-arm hinge design
- Double-line laser for highly accurate cutting
- Mitre adjustment from 52° left to 60° right
- Bevel adjustment from 47° left to 47° right
- Cutting capacity up to 104 × 341mm at 0°
- Soft start for controlled start-up
- Intelligent braking system
- Suitable for Bosch Click & Clean dust extraction systems
- Compatible with various Bosch saw stands
Applications
Suitable for professional cross-cutting, mitre cutting, bevel cutting and groove cutting in wood, wooden beams, composite materials, panels and flooring. Ideal for carpentry, construction, installation and workshop applications.
Package Contents
- One Bosch GCM 12 GDL Professional Slide Mitre Saw
- One Expert for Wood circular saw blade, 305 × 30 × 2.4mm, 72 teeth
- One Clamp
- One Stop Plate
- One Hex Key
- One Screw
- One Insert Plate
Safety Note
Always wear appropriate eye and hearing protection when operating the mitre saw. Secure the workpiece properly, keep hands away from the blade and disconnect the power before changing the blade or performing maintenance.
