Bosch GBM50-2 Magnetic Drill With Stand
Bosch GBM50-2 Magnetic Drill With Stand

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Bosch GBM50-2 Magnetic Drill With Stand

463.000 KD
In stock

Bosch GBM50-2 Magnetic Drill With Stand is a powerful 1,200 W magnetic core drill designed for precise and demanding metal drilling applications. It provides two speed ranges of 50–250 rpm and 100–510 rpm for controlled drilling performance. The machine supports annular cutters up to 50 mm, twist drills up to 23 mm and thread cutting up to M16, with a strong 14 kN magnetic retention force. Laser technology, a smart HMI system and a power supply cut-off system support accurate setup, monitoring and safe professional operation.

Specifications

Specification Details
Brand Bosch Professional
Model GBM 50-2
Product Type Magnetic Core Drill
Rated Power Input 1,200 W
Voltage 220–240 V
No-Load Speed, 1st Gear 50–250 rpm
No-Load Speed, 2nd Gear 100–510 rpm
Maximum Annular Cutter Diameter 50 mm
Maximum Twist Drill Diameter 23 mm
Maximum Thread Cutting Capacity M16
Magnetic Retention Force 14 kN
Tool Holder MT 2 – DIN 228
Maximum Drill Stroke 165 mm
Magnetic Base Dimensions 200 × 98 × 38.5 mm
Weight 14.7 kg
Laser Class Class 2
Order Number 0 601 1B4 020

Key Features

  • Powerful 1,200 W motor for demanding metal drilling.
  • Two-speed gearbox with 50–250 rpm and 100–510 rpm ranges.
  • High magnetic retention force of 14 kN for stable drilling.
  • Supports annular cutters up to 50 mm.
  • Supports twist drills up to 23 mm.
  • Thread cutting capability up to M16.
  • Laser technology assists with fast target positioning.
  • Smart HMI provides service and load alerts.
  • Power supply cut-off system helps protect against electric shock.
  • MT2 tool holder for compatible drilling accessories.
  • Integrated cooling system supports demanding drilling operations.

Applications

  • Metal core drilling
  • Twist drilling in metal
  • Thread cutting up to M16
  • Structural steel drilling
  • Fabrication and metalworking
  • Industrial workshop applications
  • Large-diameter drilling in steel

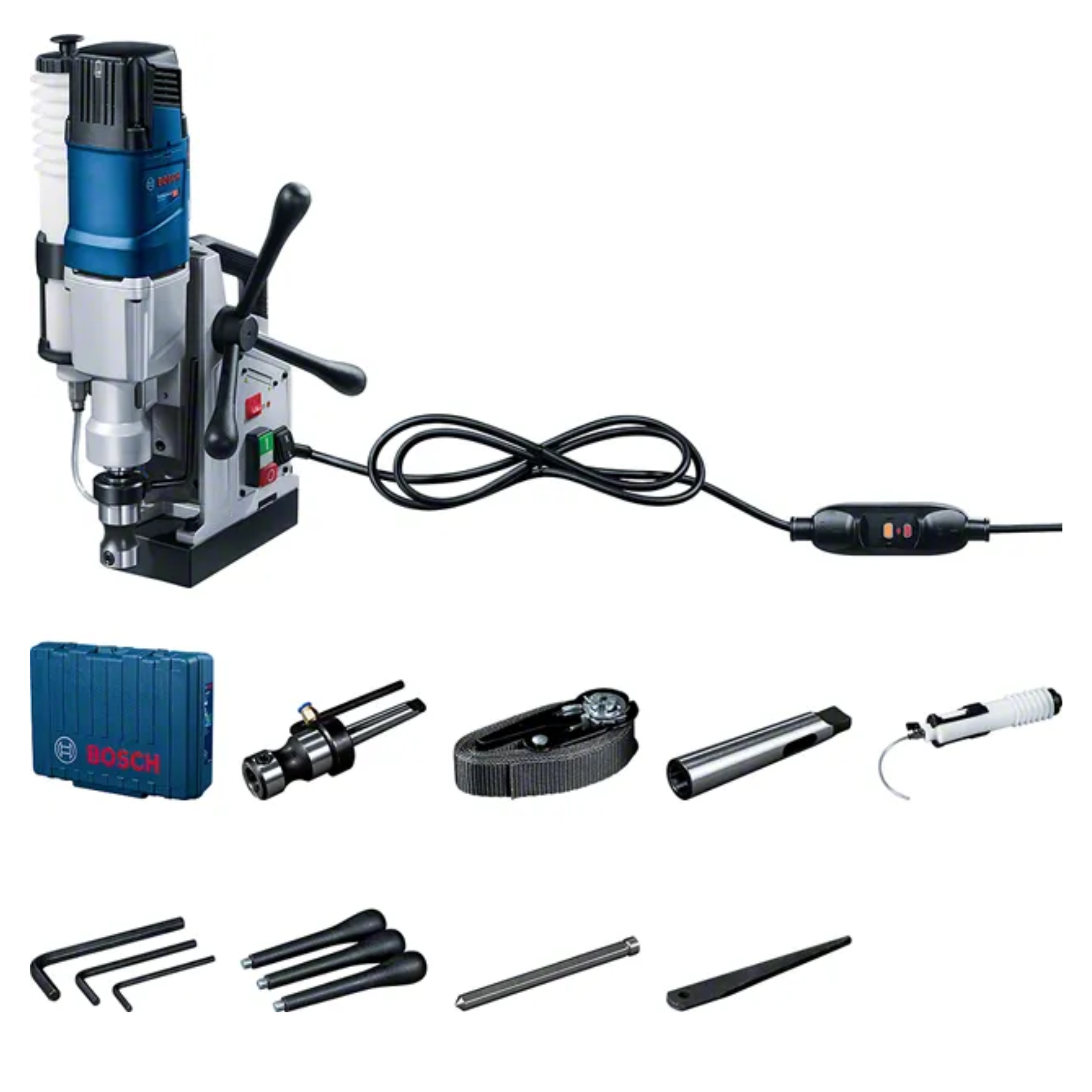

Package Contents

  • Carrying case
  • Safety strap
  • Reduction sleeve MT2/MT1
  • Pilot pin
  • Coolant tank
  • Coolant tank holder
  • Adapter for annular cutter
  • Crank handle
  • MT2 drill drift
  • 3 mm, 4 mm and 6 mm hex keys

Package contents may vary according to the regional variant.

Safety Note
Wear suitable eye and hearing protection during operation. Secure the magnetic base correctly before drilling, use compatible cutters and accessories, use the cooling system where required, and follow the manufacturer's safety instructions when operating the machine.
