رافعة يدوية ذات تروس من ياتو (0.750 طن إلى 6 طن)
تعذّر تحميل توفر الاستلام

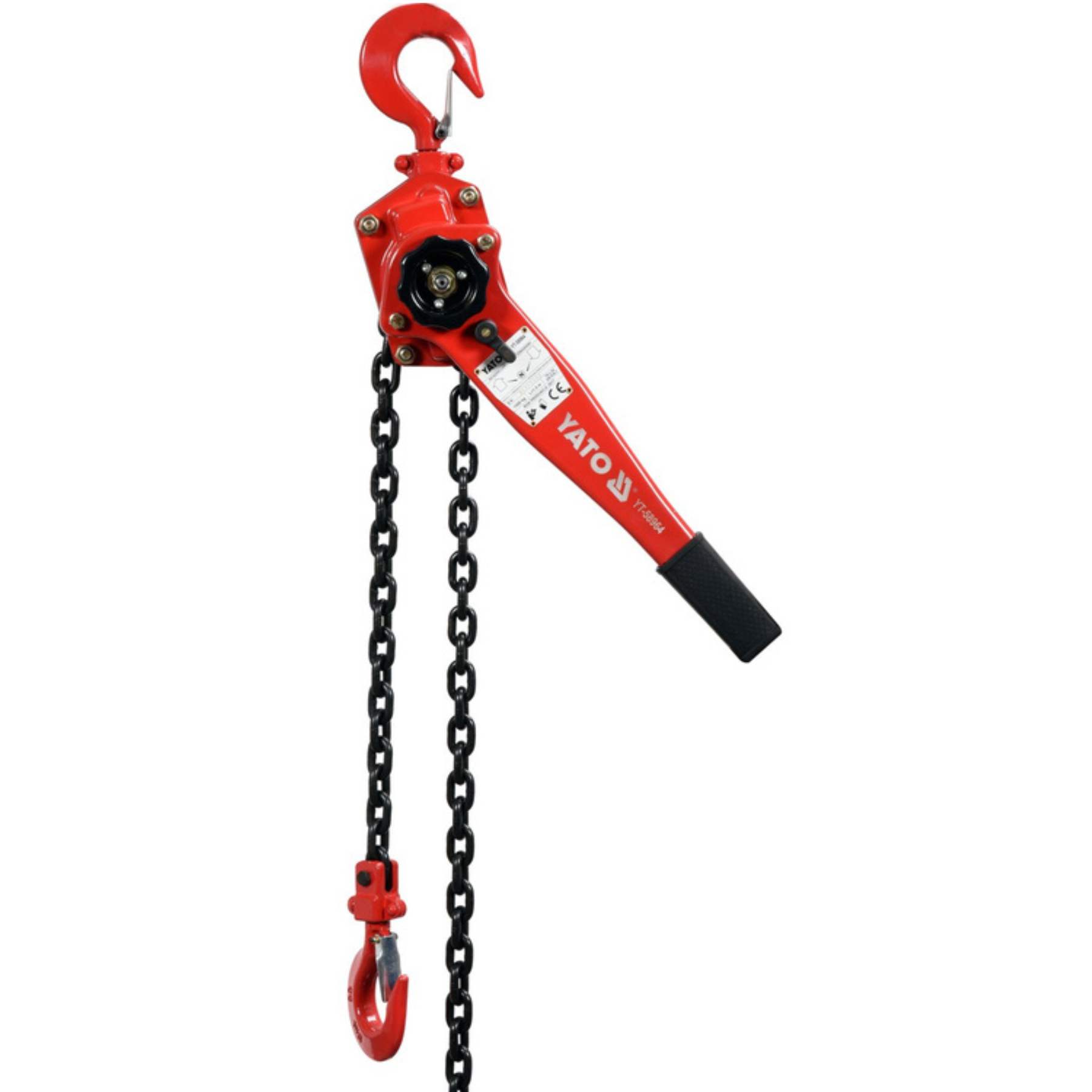

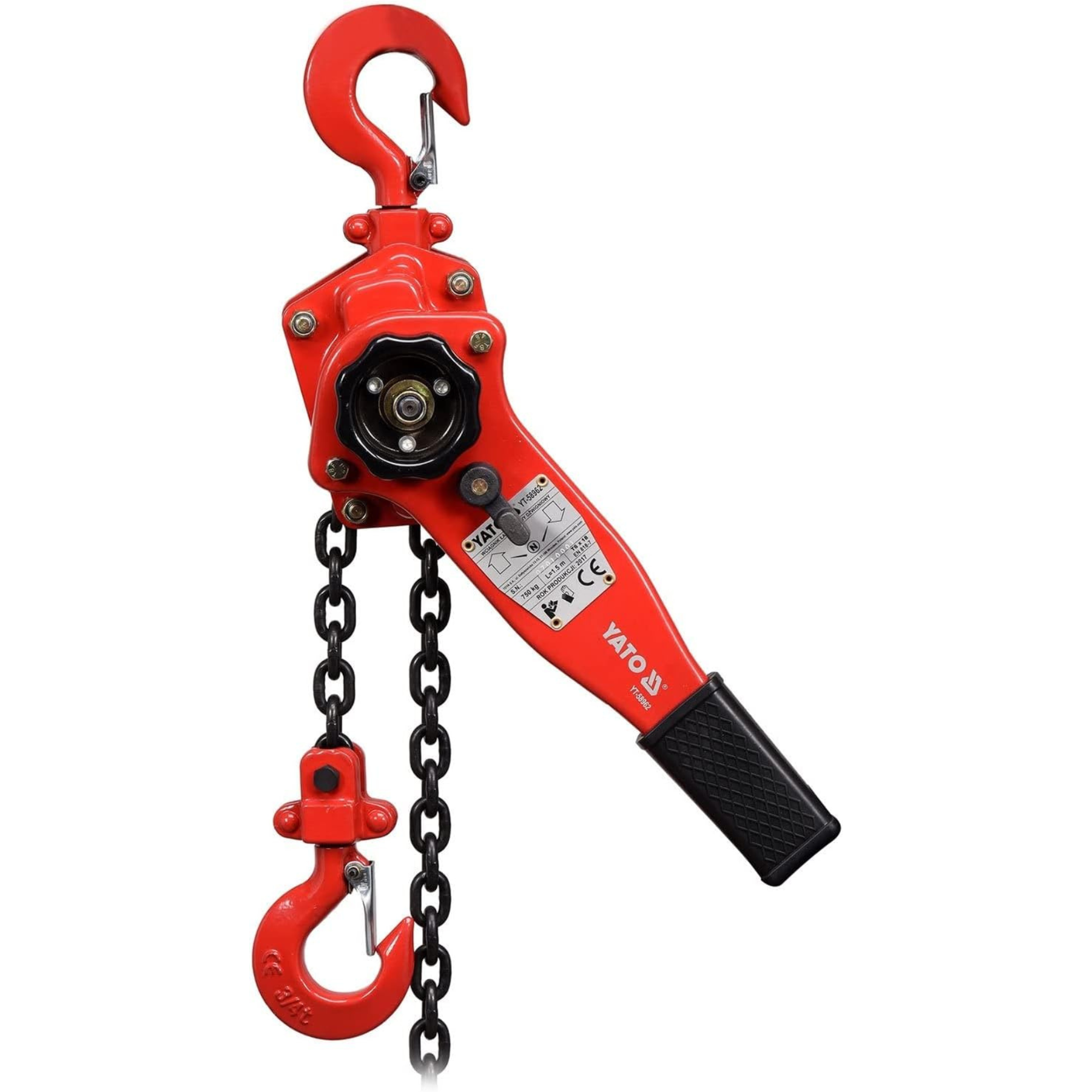

Yato Lever Block (0.750T TO 6T) is a manual chain lifting tool available in four capacities for lifting, pulling and positioning heavy loads. Each model provides a maximum lifting height of 1.5m and uses a smooth lever system that helps reduce the effort needed during operation. Its compact all-steel body is made to resist damage and corrosion during regular use. Specially shaped hooks improve load holding and provide safer operation in workshops, warehouses and industrial work areas.
Specifications
| Specification | Details |
|---|---|
| Brand | Yato |
| Product Type | Manual chain lever block |
| Available Capacities | 0.750T, 1.5T, 3T and 6T |
| Maximum Lifting Height | 1.5m |
| Body Material | Steel |
| Operation Type | Manual lever |
| Surface Protection | Corrosion-resistant |
| Suitable For | Lifting, pulling and positioning loads |
Available Models
| Capacity | Model Number | Item Code | Required Lever Force | Load Chains | Chain Link Size | Weight |
|---|---|---|---|---|---|---|
| 0.750T / 750kg | YT-58962 | HMT-14764 | 140N | 1 | 6 × 18mm | 9.5kg |
| 1.5T / 1500kg | YT-58964 | HMT-11663 | 220N | 1 | 8 × 24mm | 11.5kg |
| 3T / 3000kg | YT-58966 | HMT-14043 | 320N | 1 | 10 × 30mm | 18.5kg |
| 6T / 6000kg | YT-58967 | HMT-14044 | 340N | 2 | 10 × 30mm | 27.5kg |
Key Features
- Four lifting capacities from 750kg to 6000kg
- Maximum lifting height of 1.5m
- Manual lever system requires no electricity
- Compact all-steel construction
- Protected against corrosion
- Special hook design improves safety
- Lever system supports controlled load movement
- Suitable for regular industrial and workshop use
Applications
Suitable for lifting heavy loads, positioning machines, moving construction parts, pulling or tensioning cables and securing heavy items. It can be used in factories, transport companies, warehouses, workshops, shipyards and other lifting areas.
Package Contents
- One Yato Lever Block in the selected lifting capacity
- Load chain and hooks
- Operating manual
Safety Note
Never exceed the stated lifting capacity or allow anyone to stand below a suspended load. Inspect the chain, hooks and lever before every use, attach the block only to an approved lifting point and follow all local lifting equipment inspection rules.
