ميلووكي ظرف مفتاح 1/2x20 1.5-13 مم
تعذّر تحميل توفر الاستلام

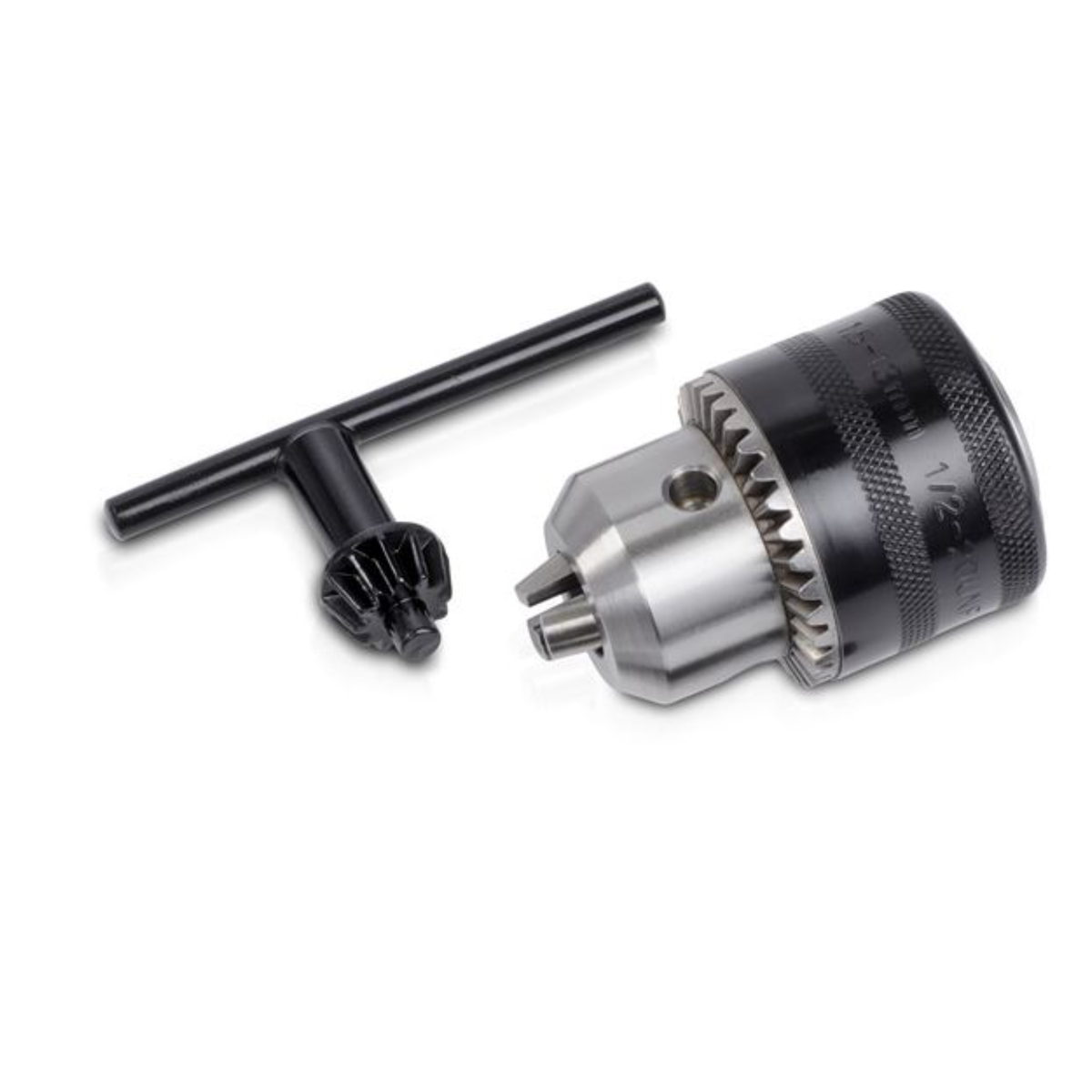

Milwaukee Key Chuck 1/2x20 1.5-13mmk is a replacement keyed chuck made for drills with a matching 1/2"-20 threaded spindle. It holds drill bits with shank sizes from 1.5mm to 13mm. The three-jaw design grips the bit firmly, while the supplied chuck key allows secure tightening and simple bit removal.
Specifications
| Specification | Details |
|---|---|
| Brand | Milwaukee |
| Product Code | 4932267980 |
| Product Type | Keyed Drill Chuck |
| Chuck Capacity | 1.5–13mm |
| Maximum Capacity | 13mm / 1/2" |
| Mounting Thread | 1/2"-20 UNF |
| Chuck Type | Geared and Keyed |
| Jaw Design | Three-Jaw |
| Compatible Tools | Drills with a Matching 1/2"-20 Threaded Spindle |
| Reversing Drill Compatible | Yes, When Correctly Secured |
| Chuck Key | Included |
| Safety Screw | Included |
| Pack Quantity | 1 Piece |
Key Features
- Holds drill bits from 1.5mm to 13mm
- Standard 1/2"-20 UNF mounting thread
- Three jaws provide a firm and even grip
- Keyed design allows secure tightening
- Suitable for forward and reverse drilling
- Supports many common drill-bit sizes
- Useful as a replacement for a worn drill chuck
- Chuck key is supplied
- Safety screw helps secure the chuck
- Simple fitting on compatible drill spindles
Applications
Suitable for holding drill bits used for drilling wood, metal, plastic and other materials. It can be fitted to compatible corded or cordless drills with a 1/2"-20 threaded spindle.
Package Contents
- Milwaukee 1.5–13mm keyed drill chuck
- Chuck key
- Safety screw
Safety Note
Confirm the spindle thread and chuck capacity before fitting. Disconnect the drill from its power source, tighten the chuck securely and remove the key before starting the tool. Never use a damaged chuck or key.
