منشار ميتري مركب بوش GTM12JL مقاس 12 بوصة
تعذّر تحميل توفر الاستلام

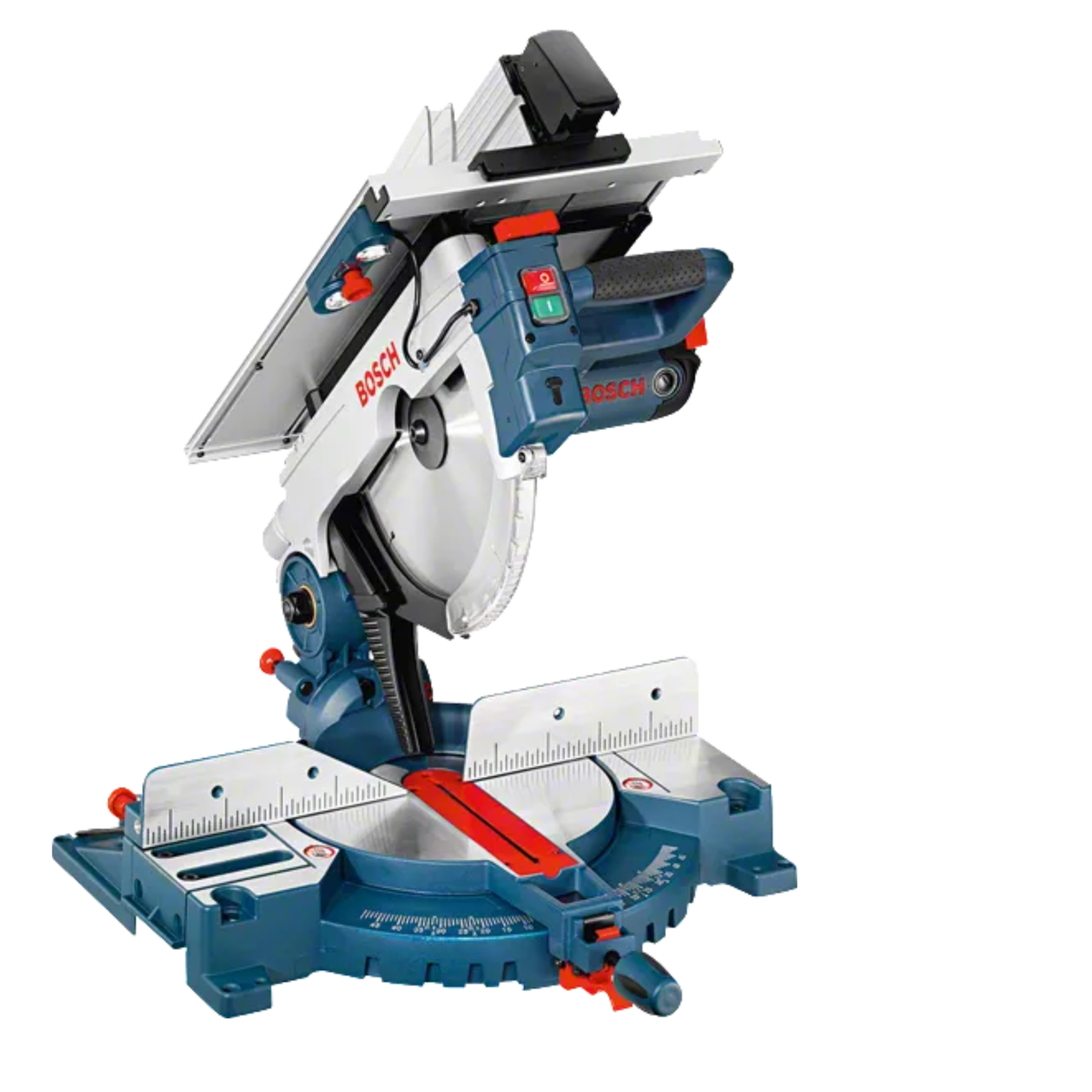

The Bosch GTM 12 JL Combi Mitre Saw is a versatile professional combination saw that combines a mitre saw and table saw in one machine. Its powerful 1,800 W motor delivers a no-load speed of 3,800 rpm, while the 305 mm saw blade provides accurate cutting performance. An integrated laser supports precise cutting alignment, and the saw offers 48° mitre adjustment to both left and right. It is designed for efficient sawing of wood in demanding workshop and construction applications.
Specifications
| Specification | Details |
|---|---|
| Rated Input Power | 1,800 W |
| Saw Blade Diameter | 305 mm / 12" |
| Saw Blade Bore | 30 mm |
| No-Load Speed | 3,800 rpm |
| Mitre Setting | 48° L / 48° R |
| Bevel Setting | 47° L / 2° R |
| Cutting Capacity at 0° | 95 × 150 mm |
| Cutting Capacity at 45° Mitre | 95 × 90 mm |
| Table Saw Cutting Height | 51 mm |
| Tool Dimensions | 660 × 550 × 400 mm |
| Weight | 21 kg |
| Laser Guide | Yes |
| Soft Start | Yes |
| Product Type | Combination Mitre & Table Saw |
| Order Number | 0 601 B15 001* |
*Regional variants may have different order numbers and electrical specifications.
Key Features
- Powerful 1,800 W motor
- 305 mm / 12" saw blade
- Combines mitre saw and table saw functions
- Integrated laser for precise cutting
- 3,800 rpm no-load speed
- 48° mitre adjustment left and right
- 47° left bevel adjustment
- Soft-start function
- 51 mm cutting height in table-saw mode
- Compatible with Bosch Click & Clean dust extraction system
- Suitable for professional woodworking applications
Applications
- Cross-cutting wood
- Mitre cutting
- Bevel cutting
- Compound cutting
- Rip cutting in table-saw mode
- Cutting timber and wooden boards
- Professional woodworking
- Construction and workshop applications
Package Contents
- 1 × Bosch GTM 12 JL Combi Mitre Saw
- 1 × Optiline Wood circular saw blade, 305 × 30 × 2.5 mm, 40 teeth
- 1 × Push stick
Safety Note
Always secure the workpiece properly and use the appropriate blade and guards for the application. Keep hands away from the rotating blade and use suitable eye, hearing and respiratory protection. Follow all Bosch operating and safety instructions.
